High Resolution 2.8 Inch 240RGB x 320 TFT Lcd Module With ILI9341 IC And MCU / RGB Interface

HongKong Guanke Industrial Limited
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment

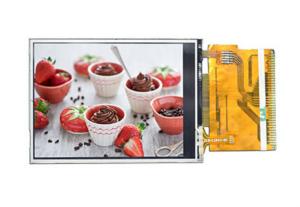

High Resolution 2.8 Inch 240RGB x 320 TFT Lcd Module With ILI9341 IC And MCU / RGB Interface

Brand Name : Fangsheng

Model Number : FST280MTQI-03PCOG

Certification : ISO9001:2015

Place of Origin : Dongguan,China

MOQ : 50

Price : Negotiation

Payment Terms : L/C, T/T, D/A, D/P, Western Union, Paypal

Supply Ability : 200K Sets / Month

Delivery Time : 3~5 Working Days

Packaging Details : Bubble Bag + Blister + Foam Box + Carton

Resolution : 240 * 320

Size : 2.8 Inch

Viewing Direction : 6 o ' clock

TFT Mode : TFT, Transmissive

Outline Size : 50 mm * 69.20 mm * 3.65 mm T

Brightness : 160Cd / M2

Contact Now

High Resolution 2.8 Inch 240RGB x 320 TFT Lcd Module With ILI9341 IC And MCU / RGB Interface



A. Specifications:

Item
Contents
Description
1
Product Name
High Resolution 2.8 Inch 240RGB x 320 TFT Lcd Module
2
Module Size
50 mm * 69.20 mm * 2.40 mm T
3
Resolution
240 * 320
4
TOP Polarizer Type
ANTI-GLARE
5
Touch-Panel Type
RESISTIVE
6
Interface Type
16 Bit MCU
7
Colors
65K
8
Controller / Driver
ILI9341V


Our Advantage:

1 . Factory direct price.
2 . Good quality.
3 . Quick shipping within 5 days.
4 . For stocks, no moq , 1pc ok . small order welcome..
5 . Online payment.
6 . Support 7 days refund.
7 . After sales services 24 hours / 7 days

Our Certificates:

1. GB/T19001-2016 idt ISO9001:2015
2. CE & ROHS
3. SGS of LCD Display


FST280TMQI-03COG
is 240 * 320 dots Lcd Module resistive touch panel wtih MCU / RGB Interface.

B. Product Applications:

High Resolution 2.8 Inch 240RGB x 320 TFT Lcd Module With ILI9341 IC And MCU / RGB Interface


High Resolution 2.8 Inch 240RGB x 320 TFT Lcd Module With ILI9341 IC And MCU / RGB Interface




High Resolution 2.8 Inch 240RGB x 320 TFT Lcd Module With ILI9341 IC And MCU / RGB Interface

Back-Light Unit
Item Symbol Min. Typ. Max. Unit Remark
Current IF -- 15X6 20X6 mA
Forward VF 3.0 3.2 3.4 V
voltage IF=60mA
VF=3.2V
Chroma X 0.250 0.30
Y 0.250 0.30
Brightness L 3200 Cd/m2
Uniformity UBL 80 %

Pins Definition:

High Resolution 2.8 Inch 240RGB x 320 TFT Lcd Module With ILI9341 IC And MCU / RGB Interface

Environment Absolute Maximum Ratings

Item Symbol Min Max Unit Remark
Operation temperature range Top -20 70 Ambient
Storage temperature range Tst -30 80 Ambient

Corrosive gas environment is not acceptable.
